Client
Dublin Port Company
Designer / Consultancy
MWP
McCarthy Browne
Construction Period
May 2024 – Ongoing
Budget
€100-200m
Berth 52, Dublin Port

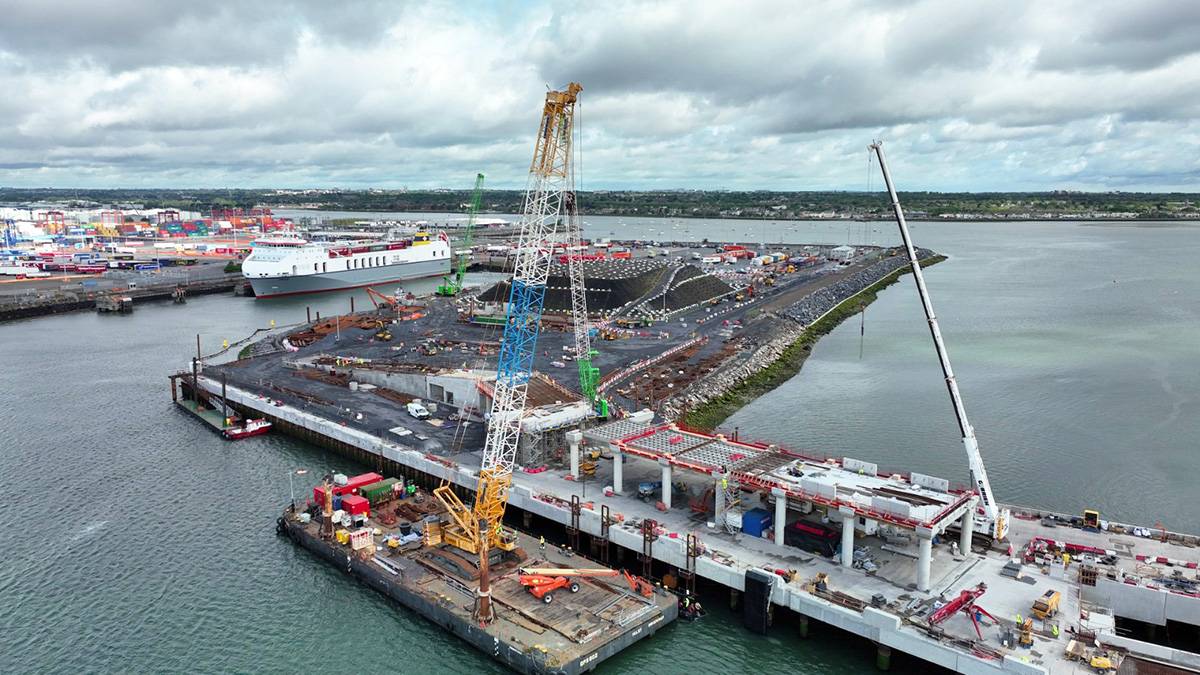

Wills Bros is delivering a new quay wall at Berth 52 on Dublin Port’s main river channel, between an operational shipping route and the environmentally sensitive River Tolka Estuary Special Protection Area (SPA). The marine infrastructure is designed to integrate with the adjoining Berth 53 development and to accommodate a future extension of Berth 52.
The project also includes upgraded landside parking and internal roads, together with drainage, utilities, lighting and communications infrastructure. A dedicated Heritage Area forms the destination point of the Dublin Port Greenway, combining public-realm works with coastal protection and landscaping.
Key Numbers
- Quay wall: combi-wall construction with tie rods and anchor wall, CFA piles, retained-earth embankment, capping beam, cathodic protection, marine furniture, fenders, heavy-duty pavement, drainage, substation and bridge access to the upper tier of the linkspan.
- Landside infrastructure: access road and retaining walls, car parking, drainage and utilities, petrol interceptors, electrical and communications systems, overhead signage gantries, public lighting and high-mast lighting.
- Heritage Area: earthworks, sheet-piled coastal protection and anchor walls, tie rods, back-of-wall drainage, cope beam, engineered fill and rock armour.
Berth 53, Dublin Port

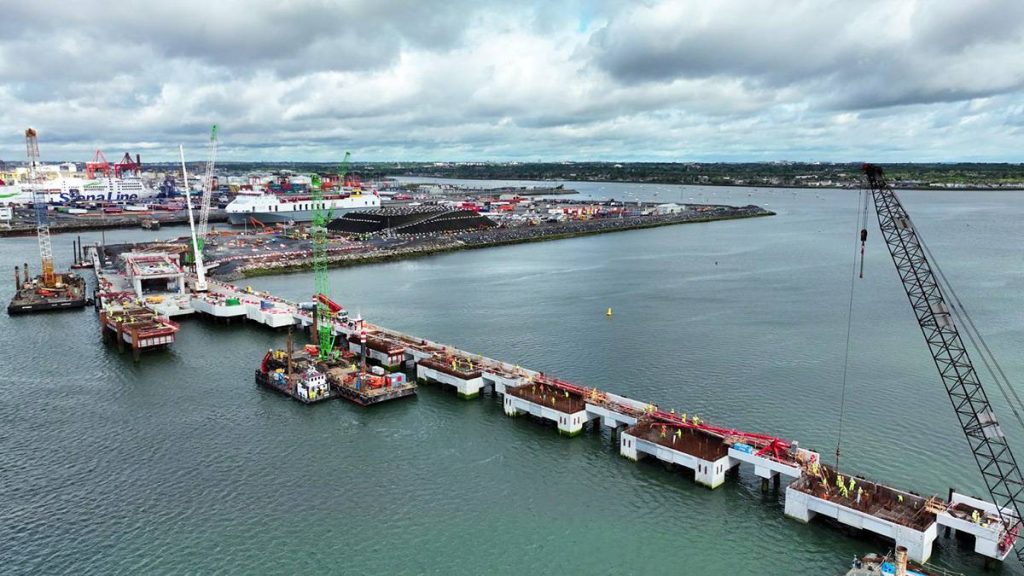

Wills Bros is replacing the existing Berth 53 with a new 120-metre deck-on-pile jetty and a 292-metre dolphin jetty extending eastwards into Dublin Bay, providing 412 metres of new marine infrastructure. The works are being undertaken between the River Tolka Estuary Special Protection Area (SPA) and Dublin Port’s live navigation channel, with the new facility designed to integrate with the adjoining Berth 52 development.
The project includes a double-tier hydraulic linkspan and an automated mooring system in an innovative configuration designed to improve the safe and efficient berthing of roll-on/roll-off vessels.
Environmental mitigation measures include propeller-wash screens, scour-protection sheet piles and a visual screen to limit disturbance to the adjacent SPA.
Key Numbers

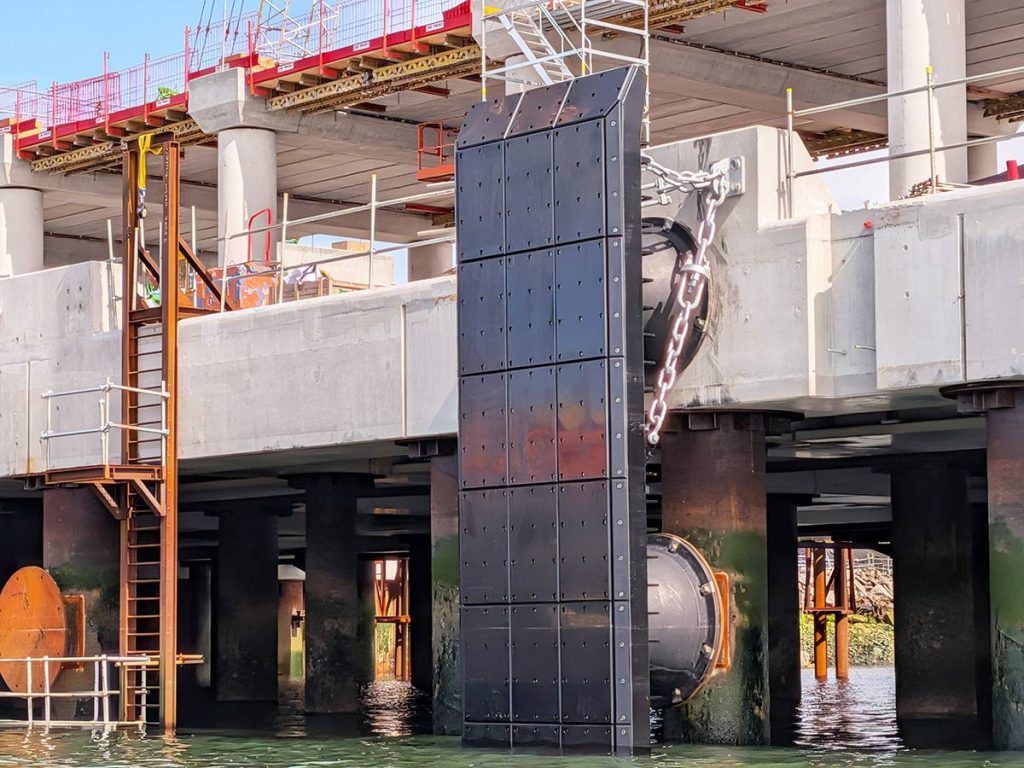

- Deck-on-pile jetty: marine piling, precast and in-situ concrete, marine furniture, fenders, propeller-wash screen, double-tier hydraulic linkspan, cathodic protection and sheet-pile installation.
- Dolphin jetty: marine piling, precast and in-situ concrete, rock anchors, marine furniture, fenders, dredging, propeller-wash screen, automated mooring system, visual screen, cathodic protection and sheet-pile installation.
